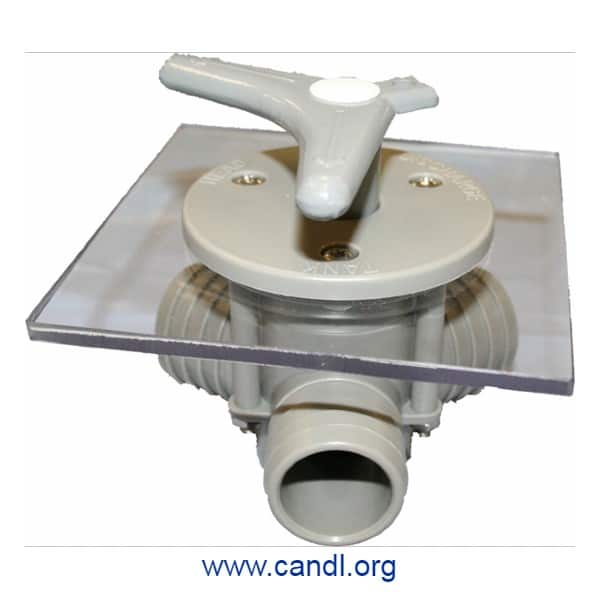

Sea-lect® YV-095D-F “Easy-Turning” Flush-Mount Y-Valve – Bosworth

P.O.A.

Easy-turning, time after time!

Redesigned for ease of turning and to resist valve “freeze-up”. Bosworth’s flush-mounted version of the “95” series Y-valve for 1-1/2″ ID or sanitation hose.

Bosworth Company Products are supplied by C&L Sales & Services P/L

Contact for Pricing



Description

MANUFACTURER: The Bosworth Company

Sea-lect® YV-095D-F “Easy-Turning” Flush-Mount Y-Valve – Bosworth Company

Easy-turning, time after time! (Also called the “M-95”.) Redesigned for ease of turning and to resist valve “freeze-up”. Bosworth’s flush-mounted version of the “95” series Y-valve for 1-1/2″ ID or sanitation hose.

Only the handle and an attractive faceplate are visible above the deck, floor or wall. (Maximum wall thickness 3/4″). A removable stop ring converts all Sea-Lect Y-valves from a “2-Flow-Path” position mode to a “3-Flow-Path” position mode.



Features:

  • Flush-mounting plate (bonnet style or “Livewell/Washdown”)
  • Accommodates 1″ – 1-1/2″ hose; also sanitation hose
  • Easy-turning, rugged, injection-molded handle (Also available in epoxy-coated aluminum.)
  • Flush-mounted so that only handle and bonnet/trim ring are visible
  • Locking tab on handle
  • Arrows on handle indicate flow path
  • Supports either 2 or 3 flow path mode
  • Optional barbed adapters shipped loose in box; install on ports of your choosing



Performance

Max Pressure  40 psi (2.8 kg/cm2)
Hose Sizes 1″ – 1-1/2″ hose
Max Service Temp 212° F / 100° C

Sea-lect® YV-095D-F “Easy-Turning” Flush-Mount Y-Valve – Bosworth Company

Brand

Sea-lect®
