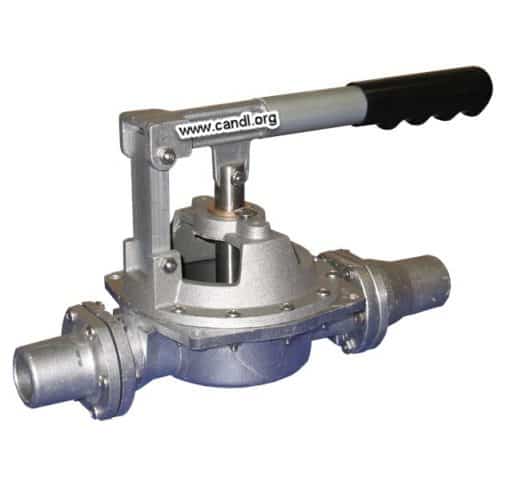

Thief Pump 1″ NPT

P.O.A.

Thief pump c/w 1″ NPT internal threads inlet and outlet, nitrile seals.

This pump is manufactured from aluminium & stainless and can be mounted in the horizontal or vertical. Available with smooth ends or 1.00″ NPTF.

Contact for Pricing



Description

Thief  Sampling Pump c/w 1″ NPT internal threads inlet and outlet, nitrile seals

  • Rugged aluminium and stainless steel components
  • Accommodates 1″ – 1-1/2″ hose
  • 15 GPM
  • Unique guided-stroke clamp ring transfers more of the pumping force into fluid motion
  • Clamp ring adjusts to 12 different handle positions
  • MAX pressure 15 PSI or 105 KPA
  • Lift: 12.0 ft / 3.7 m, or 22.0 ft / 6.7 m with check valve
  • Head: 30 ft / 9.1 m
  • Capacity @ 90 strokes / min: 14.0 GPM / 53.0 LPM
  • Volume per stroke: 0.62 qt / 0.59 LTR
  • Max Service Temp: 190° F / 88° C
