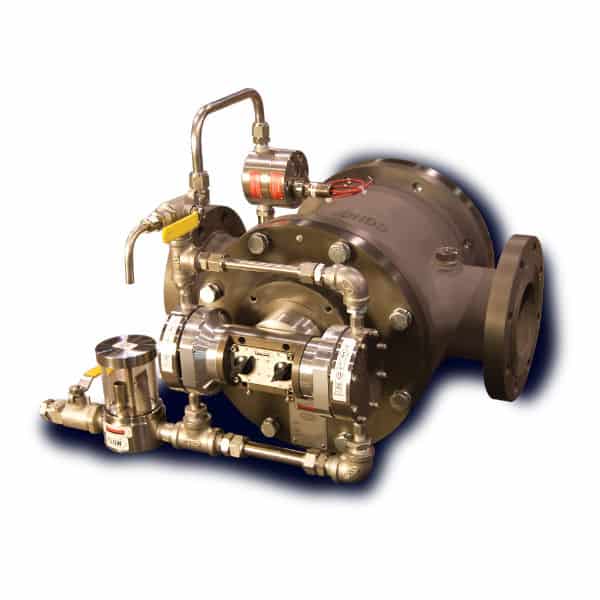

Refueler and Hydrant Injector Model 800 – Hammonds

P.O.A.

Additive Injection System

The 800 offers precision injection of additives meeting the requirements of delivery terminals, high-volume delivery vehicles and truck loading racks. Self contained and requires no product meters or pulsars.

Contact for Pricing



Hammonds Companies

Description

MANUFACTURER: Hammonds Companies

Refueler and Hydrant Injector Model 800 – Hammonds

The 800 offers precision injection of additives meeting the requirements of delivery terminals, high-volume delivery vehicles and truck loading racks.

Self contained and requires no product meters or pulsars.

  • Simple, economical installation
  • Guaranteed precision blending
  • No power or meter required
  • 4” 150# ANSI connections
  • Passive, automatic operation



Specifications:

  • Flooded suction required
  • Number of Additives: 1 Standard, up to 4 optional 4″ 150# connection standard (other connections available, consult factory for details)
  • Injection Ratios: 0-4000 ppm depending upon application
  • 75-700 gpm continuous operation
  • Product Temperature Range: -40°F to +250°F (-40°C to +121°C)
  • Maximum product line pressure: 150 psi. Higher pressures available with upgraded flanges installed
  • Product Viscocities: up to 10,000 ssu
  • Fuels, Oils, Additives and Liquid Gases
  • Duty Cycle: Intermittent



Construction Materials:

  • Aluminum casting; carbon steel fabrication optional
  • Metering Pump: All wetted parts 300 series stainless steel
  • Elastomers: Aflas, Viton, and Teflon; other elastomers available upon request
  • Mechanical Seal: Carbon on Ceramic, optional Tungsten on Carbon
  • Upgrade to Hammonds “Smart” System



Brand

Hammonds

C&L are Distributors for Hammonds Companies

The INDUSTRY LEADER in additive injection for over 30 years. Hammonds Additive Injection Systems are used by major airlines, the U.S. Military and airports the world over. Their rugged construction allows the Military to tactically deploy them from the air when necessary. This same rugged construction enables trouble-free units in the field that will work for many years. Hammonds Injectors handle single or multiple additives and accommodate various flow rates. Choose from fixed-point or portable units which enable the additives to be added in any point of the refueling process. Hammonds Technical Services Fluid-Power and Digital Additive Injection Systems Hammonds Fuel Additives Biobor Family of Fuel Additives for Diesel and Gasoline Engines
